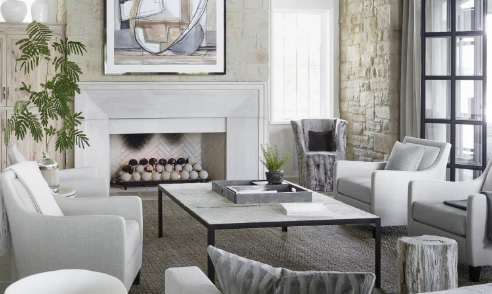

Indoor Linear Fireplace

Meet the newest pre-engineered masonry fireplace kit from FireRock – the linear fireplace. This fireplace, which is much wider than it is tall, blends old and new world styles for an option that is both traditional and strikingly modern. In addition, as with our other firebox models, it has a radius lintel and a 15″ flue (compared to the leading competitor’s 13″) for improved smoke draw performance

Our Linear model is compatible with either masonry chimneys or UL 103 metal chimney systems.

Available sizes: 60″ and 72″
Double chimney required; accommodates FireRock masonry chimney or approved metal chimney system (UL 103)
Compliances: UL-127, ANSI Z21.60
Accommodates FireRock masonry fireplace or approved metal chimney system
1″ clearance to combustibles around firebox unit and smoke chamber; additional hearth protection required

Click Here to View the Brochure

Design & Customization

All FireRock indoor models can be used indoors or outdoors and can accommodate practically any veneer, mantle or surround. Popular indoor options include marble, ledgestone, wood, brick and stone veneer. Popular outdoor options include man-made stone or sliced natural stone. For ideas and inspiration on how to customize your surround, click here.

Additional customization comes with your firebrick selection. FireRock firebrick comes in two colors – red and buff – and two thicknesses to accommodate a variety of firebrick patterns to finish out your personal taste.

Click Here for the Installation Manual

ICC Report

Clearance to Combustibles

Specifications

FIREROCK LINEAR MODEL DIMENSIONS

All measurements listed are based on dry stack units before firebrick is installed. Dimensions are nominal and are given for design and framing reference only. Please consult installation manual for all details and requirements before making final design layout decisions.

MODEL	WIDTH			HEIGHT				DEPTH		DAMPER	WEIGHT
MODEL	Opening	Firebox Rear	Overall	Opening	Firebox	Smoke Chamber	Overall	Firebox	Overall	DAMPER	WEIGHT
60″ Linear	62.5″	52″	68″	25.125″	28.875″	31.5625″	60.4375″	22.5″	28.5″	54″	2,665 lbs
72″ Linear	74.5″	64″	80″	25.125″	31.5625″	31.5625″	60.4375″	22.5″	28.5″	2 Top Seal	2,825 lbs

Chimney Diameter	Masonry Chimney: 15″ UL 103 Metal Chimney: 12″ (30″ model only) or 14″*Note: 60″ and 72″ models require 2 flues
Total Installed Height	Minimum: 15′ Maximum: 65′

CLEARANCE TO COMBUSTIBLES

Opening to Sidewall	32″
Opening to Combustible Trim	12″
Opening to Mantle with 8″ Depth	16″
Noncombustible Hearth Extension	Flush Hearth 32″ in front; 8″ each side >12″ Raised Hearth: 20″ in front; 8″ each side
Firebox & Smoke Chamber to Combustibles or Framing	1″
Smoke Chamber (Front Wall & Top) to Wood Framing	1″

APPROVALS & CERTIFICATIONS

UL 127 approved and certified for indoor or outdoor use

Approved for use with gas-starters and outside air kits

AVAILABLE ACCESSORIES – Click Links Below

Bricking Flange	Metal Chimney
Height Extension Kit	Offset Blocks
Solid Block Chimney	Chimney Pots
Firebrick & Mortar	Outside Air Kits
Dampers	Log Lighter

CAD RESOURCES

View Technical Resources for All Fireplace Models
