Indoor See-Through Fireplace
Add the warmth and beauty of a prefabricated masonry fireplace to two rooms simultaneously with the FireRock See-Through Fireplace. This see-through model can provide the ambiance of a masonry fireplace into an…
Product overview
About Indoor See-Through Fireplace.
Indoor See-Through Fireplace Kits
Add the warmth and beauty of a prefabricated masonry fireplace to two rooms simultaneously with the FireRock See-Through Fireplace. This see-through model can provide the ambiance of a masonry fireplace into an outdoor and indoor living area within any exterior or interior wall. This model saves you vital space when planning your next home project with the use of only one flue for both fireplaces. Like other FireRock models, the See-Through Fireplace is approved to burn wood or gas fuel, accommodating a FireRock masonry or approved metal chimney system. FireRock is one of the only custom home building materials companies that provides a true 48″ Pre-Engineered See-Through Fireplace option for your home. View our indoor see-through masonry fireplace construction details below.
Click Here for the Installation Manual
Construction Scenario (PDF): Indoor See-Through Fireplace System
Specifications
FIREROCK SEE-THROUGH MODEL DIMENSIONS
All measurements listed are based on dry stack units before firebrick is installed. Dimensions are nominal and are given for design and framing reference only. Please consult installation manual for all details and requirements before making final design layout decisions.
| MODEL | WIDTH | HEIGHT | DEPTH | DAMPER | WEIGHT | ||||||
| Opening | Firebox Center |
Overall | Opening | Firebox | Smoke Chamber |
Overall | Firebox | Overall | |||
| 30″ See-Through | 32.5″ | 22″ | 38″ | 34.5″ | 38.25″ | 22.375″ | 60.625″ | 28.5″ | 28.5″ | Top Seal | 1,575 lbs |
| 36″ See-Through | 38.5″ | 28″ | 44″ | 34.5″ | 38.25″ | 31.5625″ | 69.8125″ | 28.5″ | 28.5″ | Top Seal | 1,800 lbs |
| 42″ See-Through | 44.5″ | 34″ | 50″ | 34.5″ | 38,25″ | 31.5625″ | 69.8125″ | 28.5″ | 28.5″ | Top Seal | 2,050 lbs |
| 48″ See-Through | 50.5″ | 40″ | 56″ | 34.5″ | 38.25″ | 40.75″ | 79″ | 28.5″ | 28.5″ | Top Seal | 2,350 lbs |
| Chimney Diameter | Masonry Chimney: 15″ UL 103 Metal Chimney: 12″ (30″ model only) or 14″ |
||||||||||
| Total Installed Height | Minimum: 15′ Maximum: 60′ |
||||||||||
CLEARANCE TO COMBUSTIBLES
Product highlights
Built for demanding projects.
Key product information from the original post, organized for quick comparison.
Available in 30″, 36″, 42″, and 48″ sizes
Vent-Free option available for this model
Approved for in-field modifications to firebox – choose between angled interior or straight side walls
Can be installed on a combustible subfloor using our LiteRock Installation Method
Outside air source is reccommended to be utilized with this product to ensure adequate source of combustion and ventilation air
Any UL-103 compliant chimney may be used to vent a FireRock See‐Through fireplace
To ensure a UL‐127 compliant installation and to reduce the risk of smoke spillage, a set of glass or ceramic fireplace enclosure doors MUST be installed on one or both sides of the fireplace.

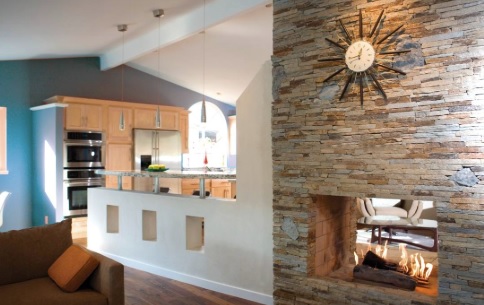

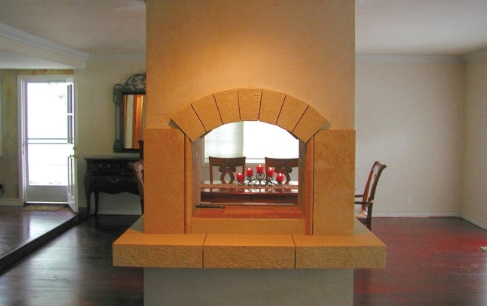

Project inspiration
